1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. The product does not contain the battery because of the limitation of the airline company.
3. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
4. Shipping Way: if you need it faster, you can choose Aliexpress standard shipping,also have China post airmail !
SMART SENSOR AT380 infrared thermometer are safely and quickly used for measuring the temperature of the object's surface without contact. The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation.
1. Temperature range: -32 ̊C~380 ̊C/-26 ̊F~716 ̊F
2. Non-contact rapid temperature measurement: It is very convenient and safe
3. Backlight function: It can clear observation in dark places
4. Automatic shutdown function: It is economical and power saving
5. Widely using range: It can use in water temperature, oil temperature, baking, heating, refrigeration, etc.
Note: this product is not suitable for measuring temperature of body surface,Forehead,Baby !
Temperature range
AT380:-32 °C to 380 °C (-26 to 716 °F )
AT380+:-50C~380C(-58F~716F)
Accuracy(In the condition of 23°C±3°C)
-32°C (-26°F) to 0°C (32°F)
±3°C 0°C(32°F) to 100°C (212°F)
±2°C 100°C here in before
±2°C or ±2% whichever is greater
Repeatability
1% of reading or 0.1°C
Response time
500 mSec, 95% response
Spectral response
8-14 um
Emissivity
pre-set 0.95
Ambient operating range
0 to 40°C (32 °Fto 104°F)
Relative humidity
10-95% RH noncondensing,@up to 30°C (86°F)
Storage temperature
-20 to 60°C (-4°Fto 140°F)
Weight
130g without battery
Dimensions
132.8*92.8*37mm
Distance to Spot Size
12:1
Power Supply
2 x AAA battery (not inlcude)
Package Contents

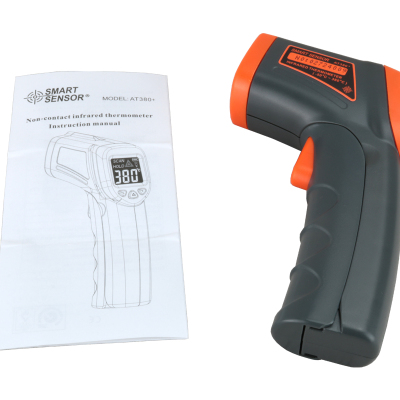

1pc AT380 Therometer
1pc user's manual English

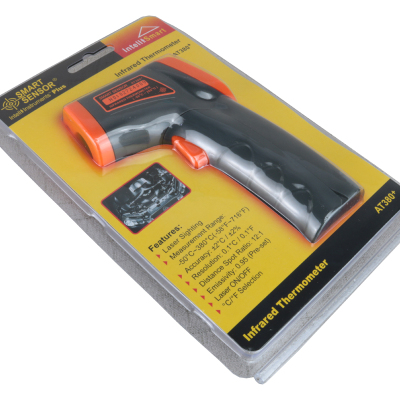

1p blister package
Quick Start Instruction:
Step 1
Press battery door clip, install battery correctly. Pull the trigger, LCD display reading& battery icon. Release the trigger and the reading will hold for 7 seconds.
Step 2
Locating a hot spot: To find a hot spot aim the thermometer outside the area of interest, then scan across with up and down motions until you locate the hot spot.(please turn on the laser for accurate measuring)
User's Guide:
Instructions
Compact, rugged and easy to use. Just aim and push the button, read current surface temperature in less than a second. Safely measure surface temperature of hot,hazardous or hard-to-reach objects without contact.
How it works
temperature of an object, The optical detector sense the object s emitted energy with different wavelength. It is collected and focus onto a detector. The electronics system translated the information into a temperature reading which is displayed on the unit.
Cautions
Infrared thermometer should be protected from the following:
--EMF (electro-magnetic fields) from welding equipment, inductive heaters.
--Thermal shock (cause by large or abrupt ambient temperature changes allow 30 minutes for unit to stabilize before use).
-- do not leave the unit on or near objects of high temperature.
